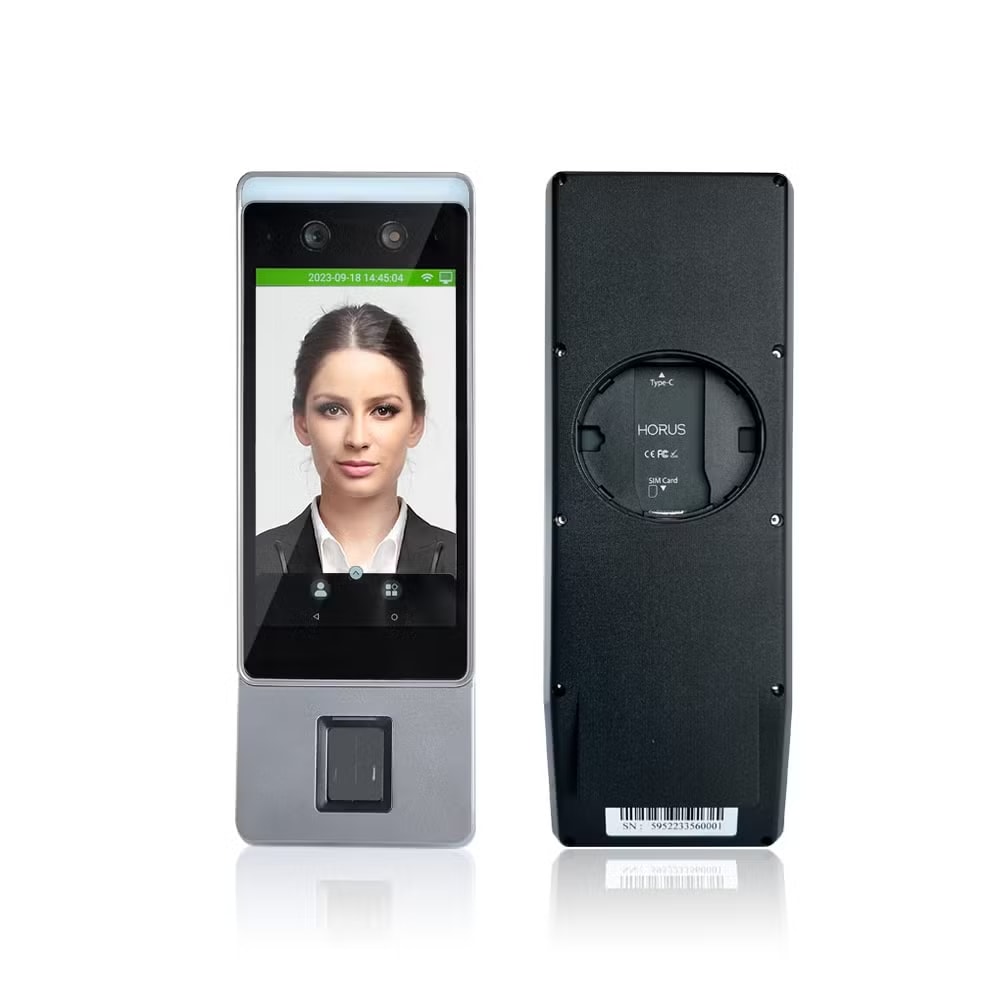

ZKTeco Horus E1-RFID — Wireless Facial Recognition Time Attendance Terminal

A portable, mobile time & attendance terminal from ZKTeco's second-generation Horus series, combining powerful facial recognition with an integrated RFID card module. Compact enough to be roughly the size of a large smartphone, the Horus E1-RFID offers long-range facial recognition, flexible wireless connectivity, and battery-powered portability — making it ideal for mobile workforces, remote sites, or attendance tracking across multiple locations. Key Specifications 1.Model: Horus E1-RFID 2.CPU: Quad-core, 1.5 GHz 3.OS: Android 8.1 4.Memory: 2GB RAM / 16GB ROM 5.Camera: 2MP dual camera with WDR 6.Display: 5" IPS touch LCD, 720×1080 resolution 7.Verification mode: Face (with RFID card module for card-based authentication) 8.Card type: ID Card / MF Card 9.Face template capacity: 6,000 (up to 10,000 optional) 10.User capacity: 6,000 (up to 10,000 optional) 11.Transaction capacity: 100,000 12.Connectivity: TCP/IP, Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n), Bluetooth 4.0, USB 2.0, 4G wireless broadband 13.4G bands: GSM 850/900/1800/1900; WCDMA 850/900/1700/1900/2100; TDD-LTE B38/B40/B41M; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B 14.GPS: GPS/A-GPS support 15.Microphone: Clear, low-noise audio pickup within 1cm 16.Battery: 4300 mAh, 7.4V rated voltage, 12±0.5V/1.5A output — over 8 hours standby with wireless radios off, full charge in 5–6 hours 17.Working temperature: -10°C to 50°C 18.Working humidity: 20–80% 19.Dimensions: 160.6 × 76.6 × 34.7 mm 20.Certifications: CE, FCC, RoHS Performance -Face recognition distance: up to 3 meters -Pose angle tolerance: ±30 degrees Features -Anti-spoofing algorithm defends against print attacks (laser, color, B/W photos), video attacks, and 3D mask attacks -Positioning function allows uploading of attendance location data, useful for tracking mobile or field-based staff -Compatible with ZKBioSecurity and ZKBio Time platforms for centralized personnel and attendance management -Multiple connectivity options (Wi-Fi, 4G, Bluetooth, USB) support flexible deployment in offices, remote sites, or areas without fixed network infrastructure -Optional expansion features available: embedded GPS/A-GPS, microphone, and PIR sensor. Good for: Mobile workforces, construction sites, remote or multi-location attendance tracking, and any environment needing portable, wireless facial recognition time & attendance without a fixed installation.
