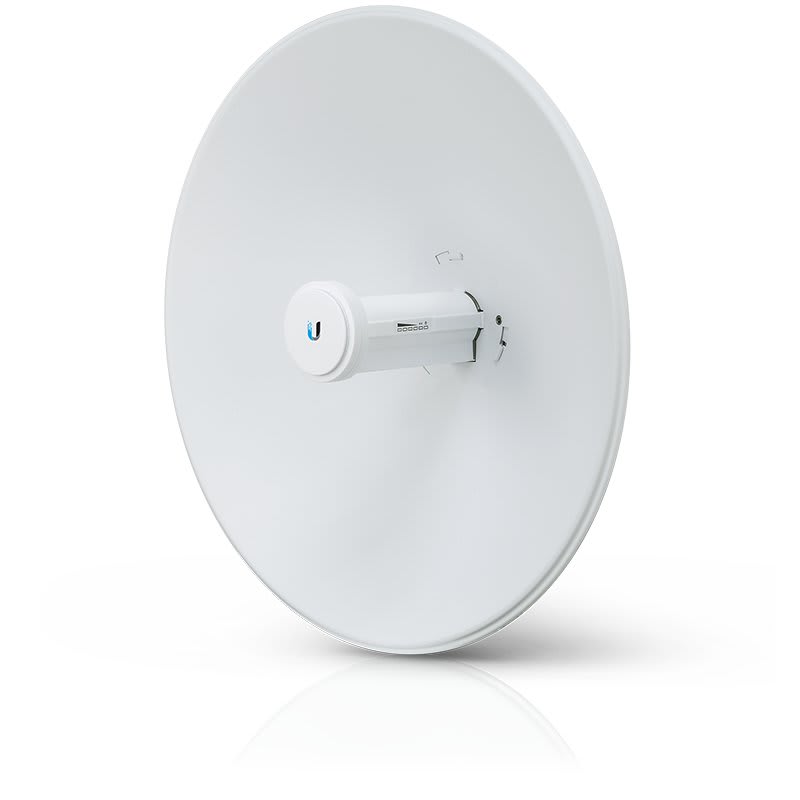

Ubiquiti airMAX PowerBeam 5AC Gen2 (PBE-5AC-Gen2)

A high-performance 5GHz airMAX ac point-to-point (PtP) bridge with an integrated dish reflector, purpose-built for long-range outdoor wireless links — WISP deployments, building-to-building connectivity, and remote network extensions. Its 25 dBi antenna focuses RF energy into a tight beam for strong signal quality and improved noise immunity, even in areas crowded with competing RF signals. Key Specifications 1.Model: PBE-5AC-Gen2 2.Frequency: 2412–2472 MHz and 5150–5875 MHz (varies by region — US version covers 5150–5350 MHz and 5470–5850 MHz) 3.Antenna gain: 25 dBi, integrated dish reflector 4.WiFi standard: 802.11ac 5.Processor: MIPS 74Kc 6.Memory: 64 MB DDR2 RAM 7.Networking interface: 1x 10/100/1000 Gigabit Ethernet port 8.Power method: Passive PoE, 2-pair (4,5+; 7,8 return) 9.Power supply: 24V, 0.5A Gigabit PoE adapter (included) 10.Supported voltage range: 20–27V DC 11.Max power consumption: 8.5 W 12.Dimensions: 420 x 420 x 230 mm 13.Weight: 2.2 kg 14.Enclosure: UV-stabilized polycarbonate antenna feed, powder-coated SPCC dish reflector 15.Mounting: Pole mount (included) 16.Wind loading: 380 N at 200 km/h 17.Wind survivability: 200 km/h (125 mph) 18.Channel widths: PtP mode up to 80 MHz; PtMP mode up to 40 MHz 19.LEDs: Power, Ethernet, and 4x signal strength indicators Performance Throughput: 450+ Mbps real TCP/IP throughput. Features -Dedicated management WiFi radio allows setup, alignment, and configuration from a mobile device without interrupting the main 5GHz link -InnerFeed technology integrates the radio directly into the antenna feedhorn, eliminating cable loss for better performance -Tool-free assembly — only a single wrench needed for pole-mounting -Enhanced ESD/surge protection and a robust mount with a built-in lifting loop/handle for easier installation -Directional dish design improves noise immunity and link quality in congested RF environments -Supports airMAX AC features including bridging, routing, monitoring, and traffic shaping Good for: Long-range point-to-point wireless links, WISP infrastructure, building-to-building connectivity, and remote network extensions where maximum throughput and range are priorities.
