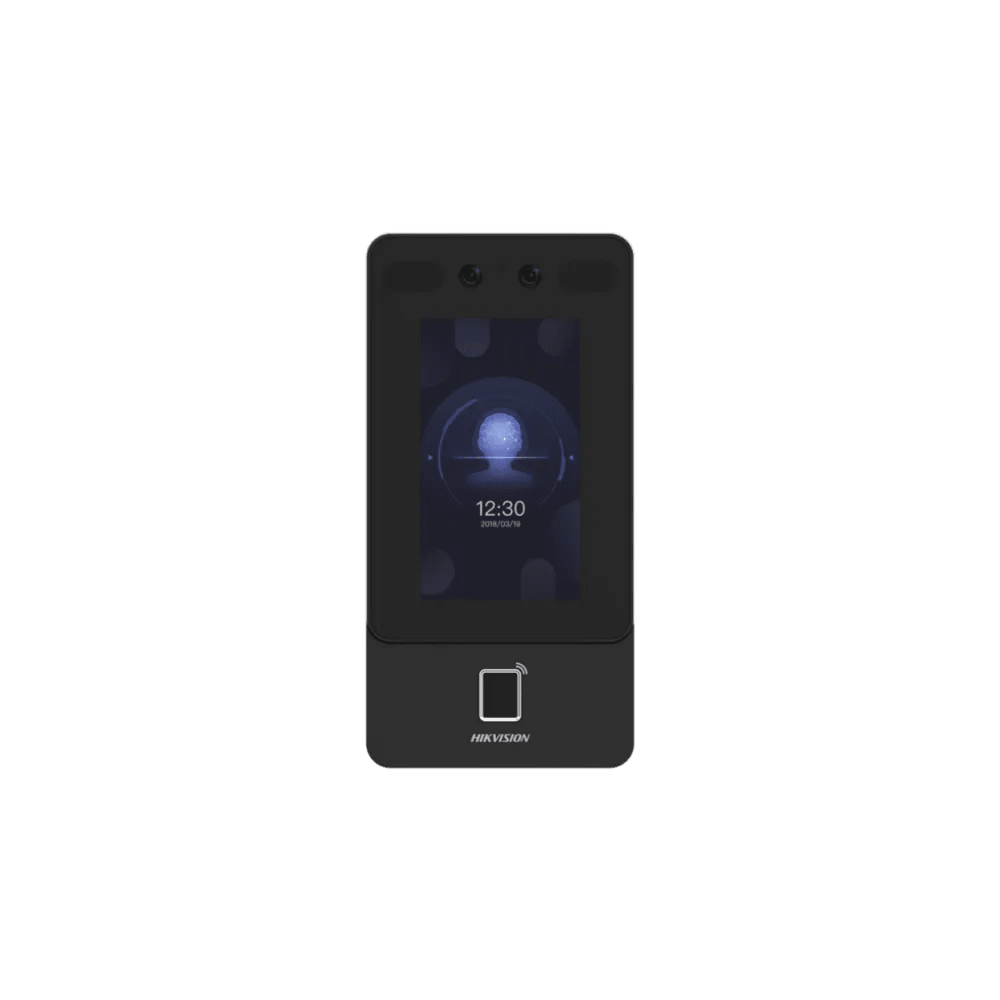

Hikvision DS-K1T342MFX — Value Series Face Recognition Terminal

A cost-effective face recognition access control and time attendance terminal, using a deep learning algorithm for fast, accurate identification. Part of Hikvision's Value Series, it combines face, card, fingerprint, and password authentication in a compact wall-mounted unit — ideal for small to medium businesses and retail environments that need reliable, multi-method access control without the higher storage capacity of Hikvision's premium terminals. Key Specifications 1.Model: DS-K1T342MFX 2.Display: 4.3" capacitive touchscreen LCD, 272 × 480 resolution 3.Camera: Dual-lens, 2MP 4.Authentication methods: Face, Card, Fingerprint, Password 5.Card type: M1 card, 13.56 MHz 6.Network: 1x RJ-45, 10/100M self-adaptive, TCP/IP 7.Interfaces: RS-485 (Hikvision protocol), Wiegand (Hik 26-bit/34-bit), USB, lock control, exit 8.button, door contact input, tamper input 9.Power supply: 12V DC, 1A (power adapter included) 10.Working temperature: -30°C to 60°C 11.Working humidity: 0–90% (non-condensing) 12.Dimensions: 91.3 × 181.3 × 24.5 mm 13.Weight: 0.36 kg net / 0.93 kg gross 14.Mounting: Wall mount 15.Languages supported: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean. Capacity -Up to 1,500 face templates -Up to 3,000 fingerprint templates -Up to 3,000 card users -Up to 150,000 event logs Performance -Face recognition accuracy: >99% -Face recognition duration: <0.2 seconds per user -Face recognition distance: 0.3–1.5 m -Fingerprint recognition duration: <1 second Features -Deep learning-based facial recognition for fast, accurate identification -Supports mask-worn face recognition -Two-way audio compatible with client software, indoor stations, and main stations -Supports ISAPI and ISUP 5.0 protocols for integration with Hikvision's access control platforms -Configurable via web client for streamlined setup and management Good for: Small to medium businesses, retail stores, and offices needing a compact, affordable, multi-method biometric access control and time & attendance terminal.
